Telemetry for Harsh Environments
Monitor and control your assets remotely – 24 hours a day
Telemation is the trusted Australian & New Zealand partner for Senquip rugged telemetry. We supply, configure, integrate and support ORB and QUAD devices as part of complete remote monitoring and control solutions for mining, industrial, agricultural and utilities customers.
Why buy Senquip through Telemation?
We provide more than Senquip hardware. With local stock across Australia and New Zealand, experienced application engineering and local technical support, we can help you specify, configure and integrate a complete solution.
From JavaScript edge processing and portal setup to sensors, power systems, enclosures, displays, wiring, SCADA, MQTT and HTTP integration, our team can support the entire project from concept through to deployment.
We offer a practical one-stop solution for telemetry, automation and remote control.
| Feature | Description | ORB | QUAD |
|---|---|---|---|
| Mobile Connection | 4G/5G LTE CAT M1 or 2G/3G/4G LTE CAT 1, SIM card holder for user provided SIM | Internal Antenna | External Antenna |
| Wi-Fi | 802.11 b/g/n, 2.4GHz, supports WPA, WPA2, WPA3 authentication modes | Internal Antenna | Internal Antenna |
| GPS | GPS, BeiDou, Galileo and GLONASS systems supported for location and speed | Internal Antenna | External Antenna |
| Bluetooth | Bluetooth version 4.2: receive and transmit BLE advertising messages, connect and pair to bluetooth devices | Internal Antenna | Internal Antenna |
| Serial | RS232 and RS485, configurable RS485 termination resistor, capture, MODBUS and scripted modes | 1 RS232, 1 RS485 | 1 RS232, 1 RS485 |
| CAN | High speed CAN FD, no limitation on protocol support | 1 | 2 |
| Multipurpose IO | Analog, digital, frequency, pulse, Output sink and source, 4-20mA sink and source | 5 | |
| Multipurpose IO | 2 x Analog + digital in, 1 x Output + analog in, 2 x 4-20mA current source | Yes | |
| Accelerometer | Pitch, roll, angle and vibration functionality. Wake from sleep. | Yes | Yes |
| Magnetic Sensor | Configurable to wake device, enter setup mode, trigger script, or all options | Yes | Yes |
| Tamper | Inbuilt tamper detection | Yes | Yes |
| Power Supply | 10VDC to 75VDC, solar with inbuilt regulator, internal 1800mA LiPo backup battery | Yes | Yes |
| AA Batteries | 4 x 1.6V Energiser Lithium batteries for low power, low update rate applications | Yes | No |
| Boost Supply | Continue to power external sensors when power is lost with internal supply boosted from backup battery | 12V fixed | 5-25V settable |
| Edge Processing | Write and deploy JavaScript applications to manipulate data, create alerts, control devices and more | Yes | Yes |
| Configuration | Via embedded webserver, Senquip connect App, or online at the Senquip Portal | Yes | Yes |
| Endpoints | Third party UDP, MQTT and HTTP endpoints with customised data packet formats supported | ||
| Security | AES256 data encryption in transit and at rest, endpoint communications secured with PKI certificates | ||
| Environmental | Operating temperature -20oC to 80oC. Water ingress IP67 | Yes | Yes |

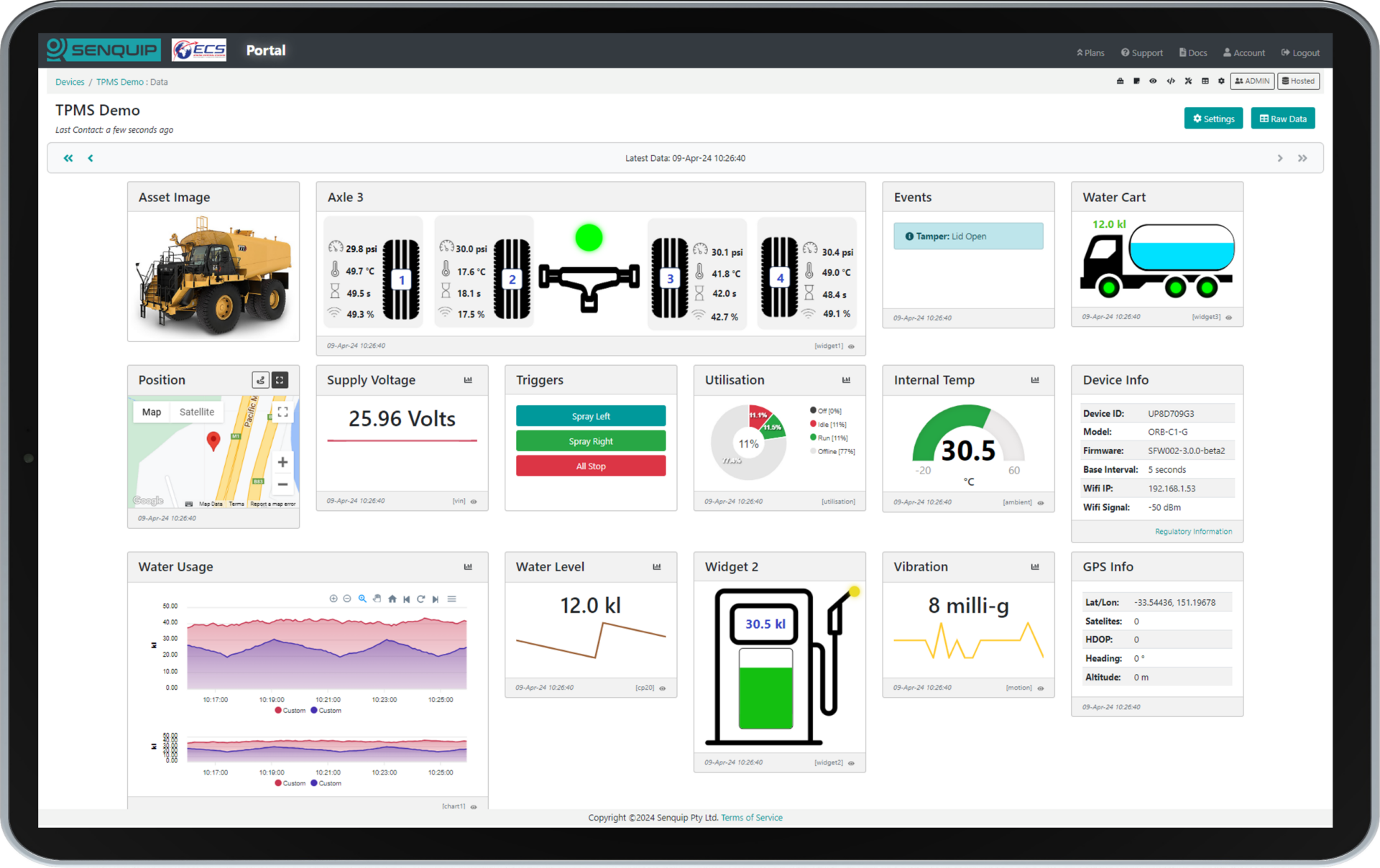

SENQUIP PORTAL
The Senquip Portal is a secure cloud solution that is powered by AWS. The portal allows for viewing of current data, data storage, remote configuration, firmware updates, event forwarding and user account management.
Manage
Group devices, display overview, manage subscriptions.
View
View device data, create infographics and charts.
Script
Write your own scripts to analyse, control, and format data.
Download
Download your data in CSV format or automate via API.
Analyse
Compare measurements, look for anomalies.
Setup
Remote configuration and over the air firmware updates.
| Basic | Hosted |
|---|---|
| Configure device from Senquip Portal | Configure device from Senquip Portal |
| Connection to a private server | Connection to a private server |
| View current data on Senquip Portal | View current and historical data on Senquip Portal |
| User configurable update rates down to 5 min | User configurable update rates down to 5 seconds |
| Device scripting | Device scripting |
| Portal access for 3 users | Portal access for 50 users |
| Over the Air (OTA) firmware updates | Over the Air (OTA) firmware updates |
| Export raw data | |
| Trigger remote actions | |
| Create custom charts | |
| Device to Device data messages (via Portal) | |
| 300 email alerts per month | |
| 100 SMS alerts per month | |
| Senquip Cloud API access | |
| AEMP API access |
*Every device includes a 90 day trial on the hosted plan
Part numbers recommended in Australia
ORB-C1-G: ORB-C1 with Wi-fi and 4G/5G LTE CAT-M1 communications + GPS
QUAD-C2-G: QUAD-C2 with Wi-Fi and 4G/5G LTE CAT-M1 communications + GPS
